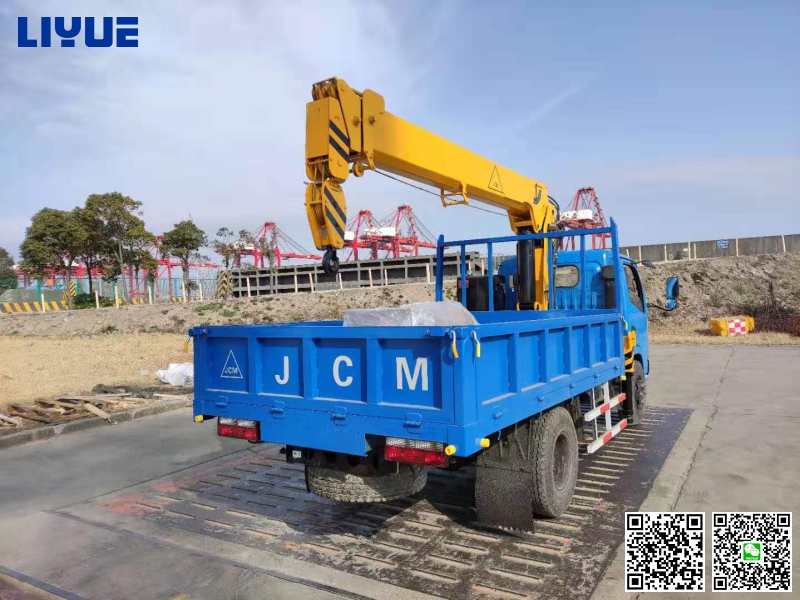

5 Tons Lorry Crane to Guatemala
5 Tons Lorry Crane Main Specifications
| Project | Unit | Value | |
| Crane Dimension | Crane Model | － | SQ 5 |
| Max. Lifting Capacity | kg | 5,000 | |
| Max. Lifting Height | m | 10 | |
| Working Radius/ Span | m | 2.2-8.5 | |
| Rotation Angle | º | 360 | |
| Boom Raising Angle Scope | º | 0-75 | |
| Boom Sections | Piece | 3 | |
| Outrigger Quantity | Piece | 2 | |
| Outrigger Span (Fully Extended) | mm | 2280-5100 | |
| Crane Weight | kg | 2260 | |
| Hydraulic Tank Capacity | L | 90 | |
| Max. Flow Rate of Hydraulic Oil System | L/min | 32 | |
| Hydraulic System Rated Pressure | Mpa | 20 | |
| Installation Space | mm | 900 | |
| Working Parameter | The Basic Boom Length | m | 3.8-11.5 |
| Max. Lifting Torque | T.m | 12.5 | |
| Max. Slewing Speed | r/ min | 2 | |
